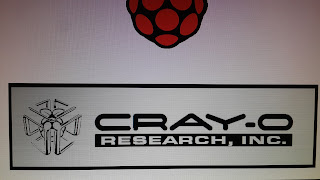

Raspberry Pi CRAY 0 Edition

Original LED Mod:
https://goddess-gate.com/projects/en/raspi/raspiledmeter


So I bought one of these boards to see what is all about.
I think they are amazing pieces of hardware.
My first board was a Zero second edition with bluetooth and WiFi support on board.
Quite fast on terminal mode while working in headless mode and terribly slow with the GUI.
At least a Pi3b was donated to me from my friends today on my birthday :-)

So, what is this post about?

We had an idea on http://flashback-computing.com/ to make a bbs and the first candidate was my Pi Zero.
Immediately the first thing the crossed my mind was a proper case for this kind of duty that would appealed with the seriousness of the situation :-D

I thought that a CRAY case would match like a charm, so I started scavenging parts to use as I wanted to make it with what I could find on my path.
It wasn't about money I just felt that way it should be done, like a machine from a fallout generation.

Enough talking, let's see some pictures.

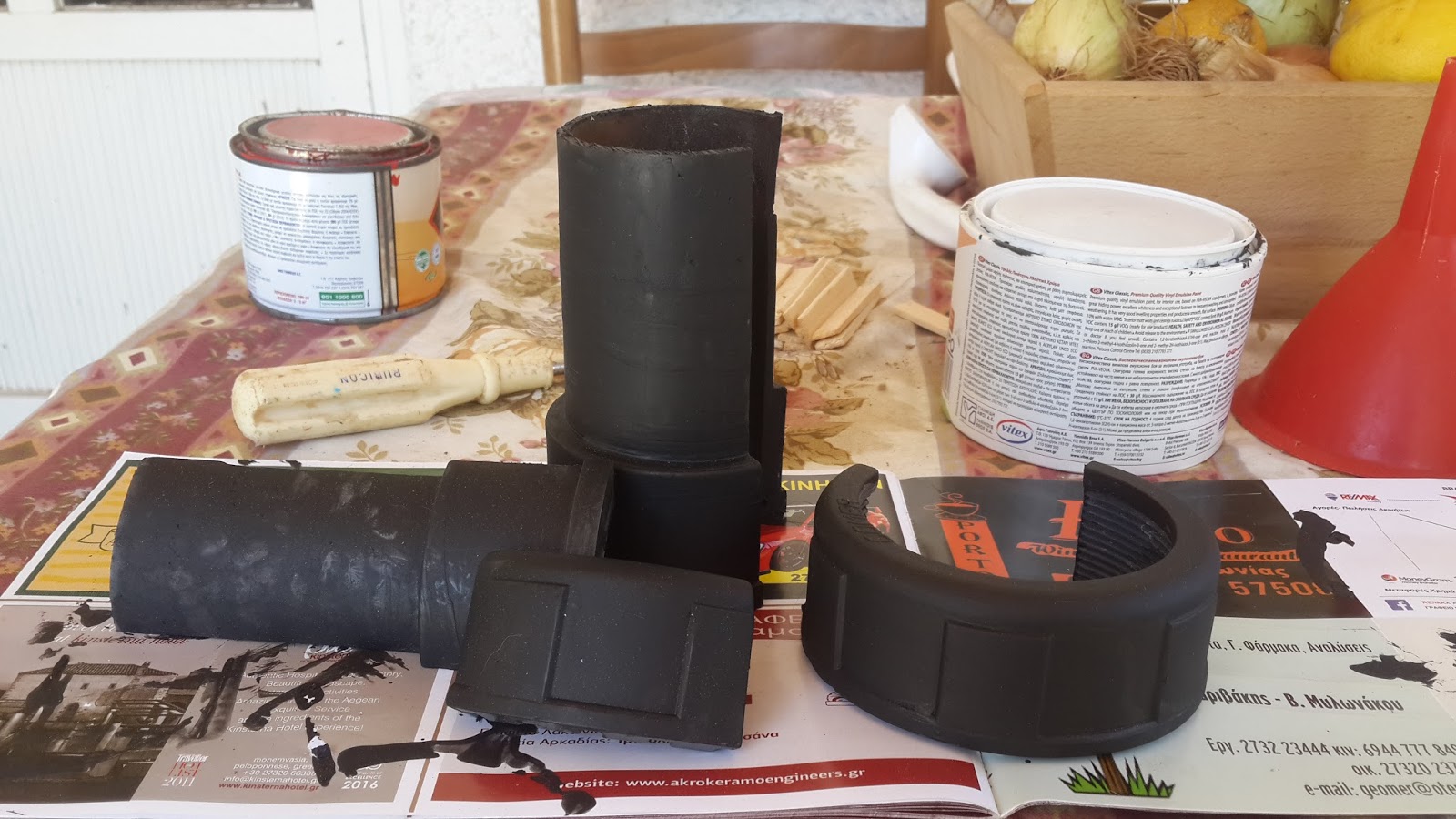

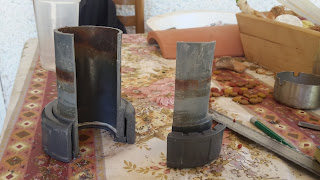

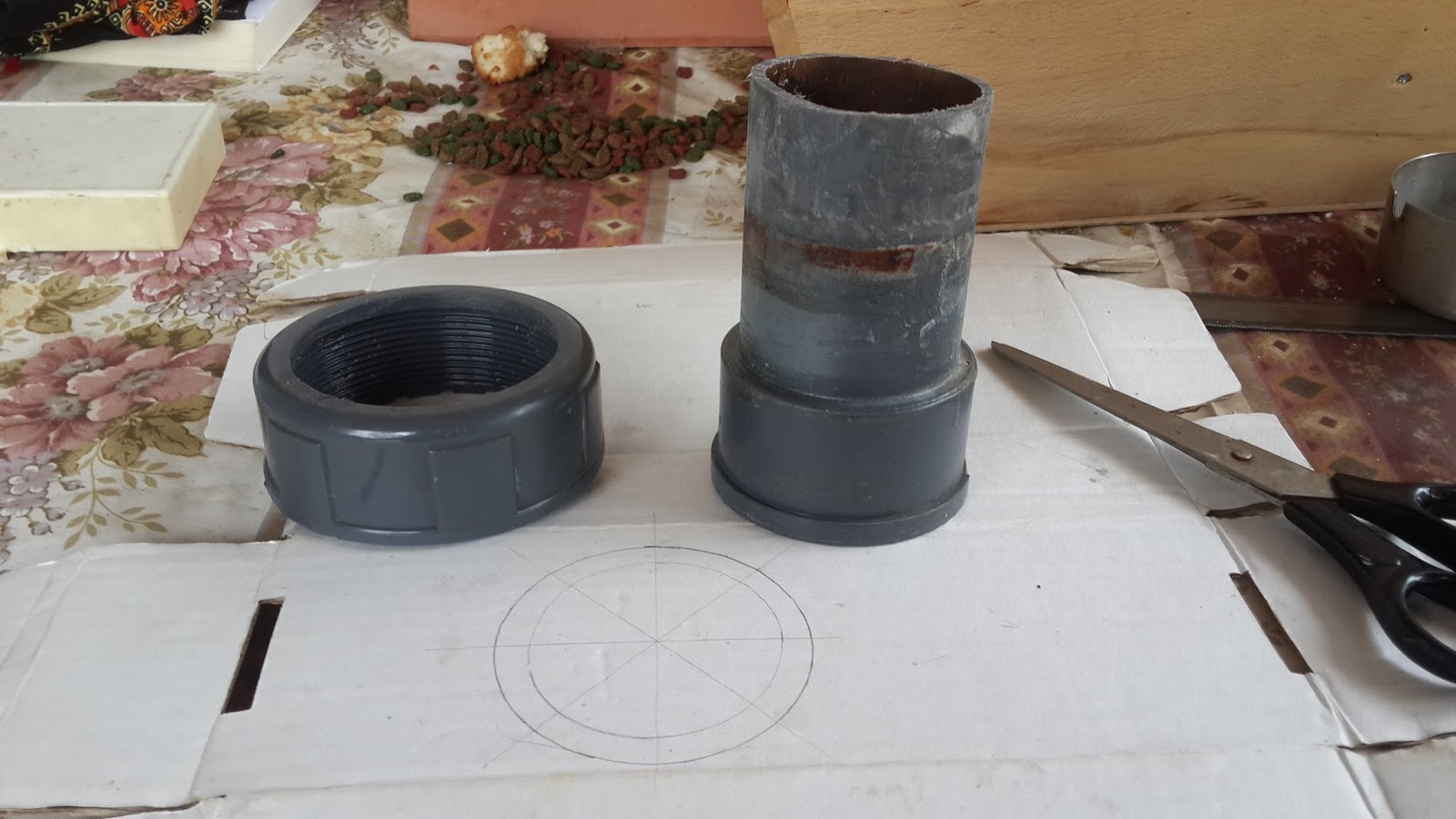

A piece of industrial PVC pipe was used for the main body.

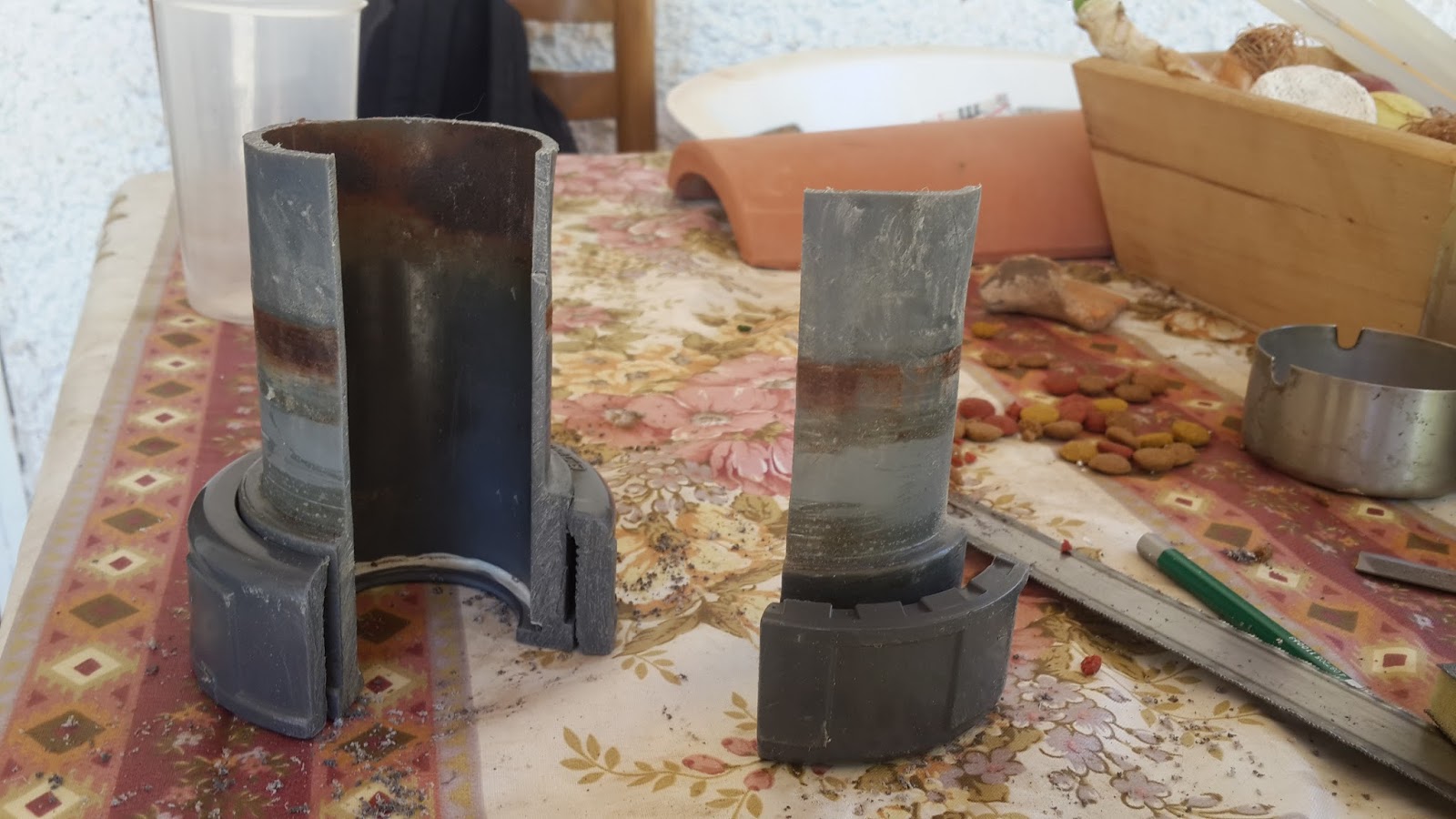

A slice for the "door"

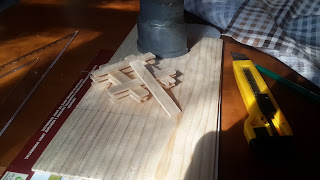

Small pieces of wood

A bit of painting

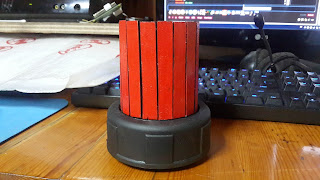

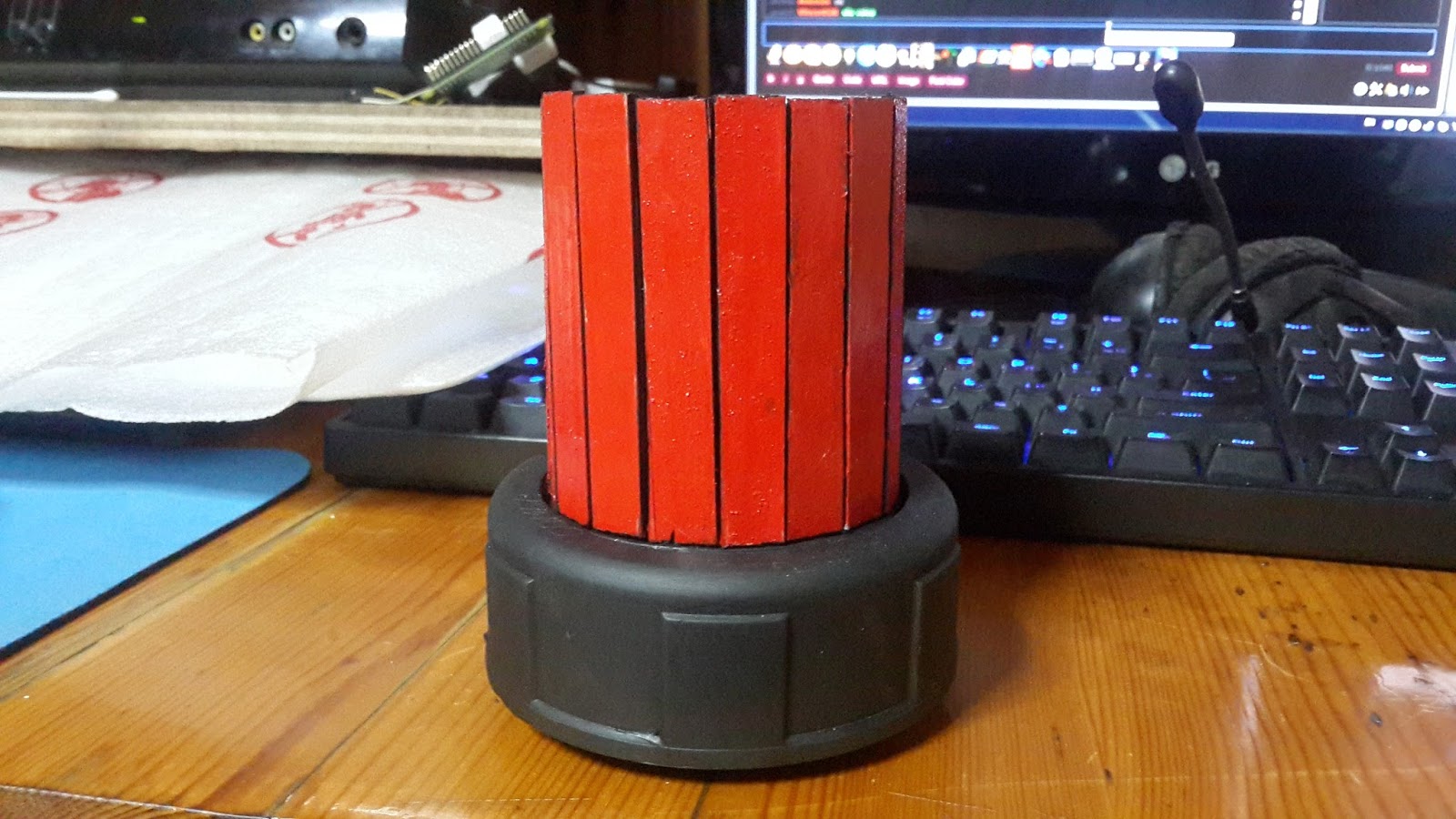

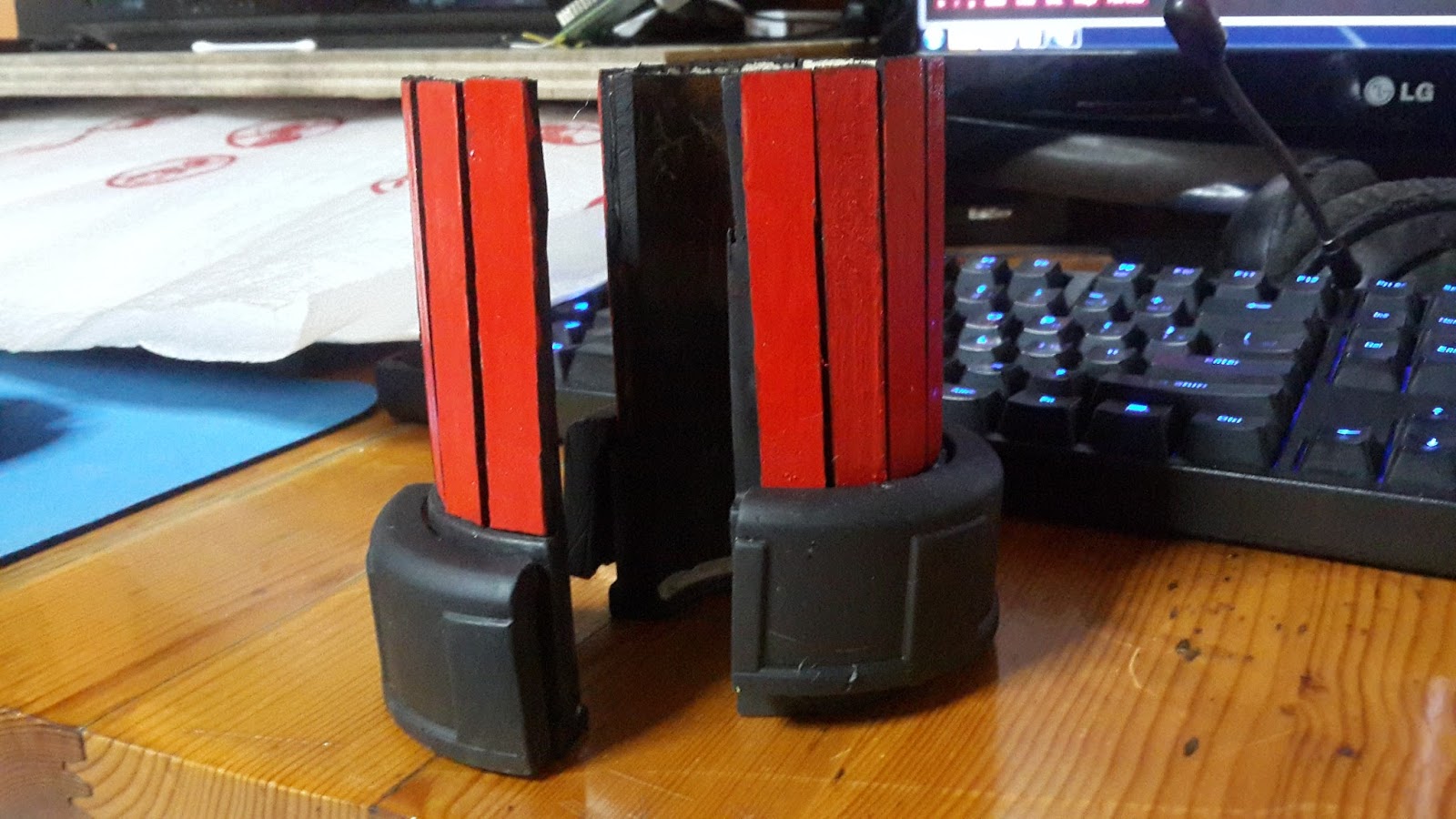

It begins to take shape


Now it's time for a CPU Usage LED mod

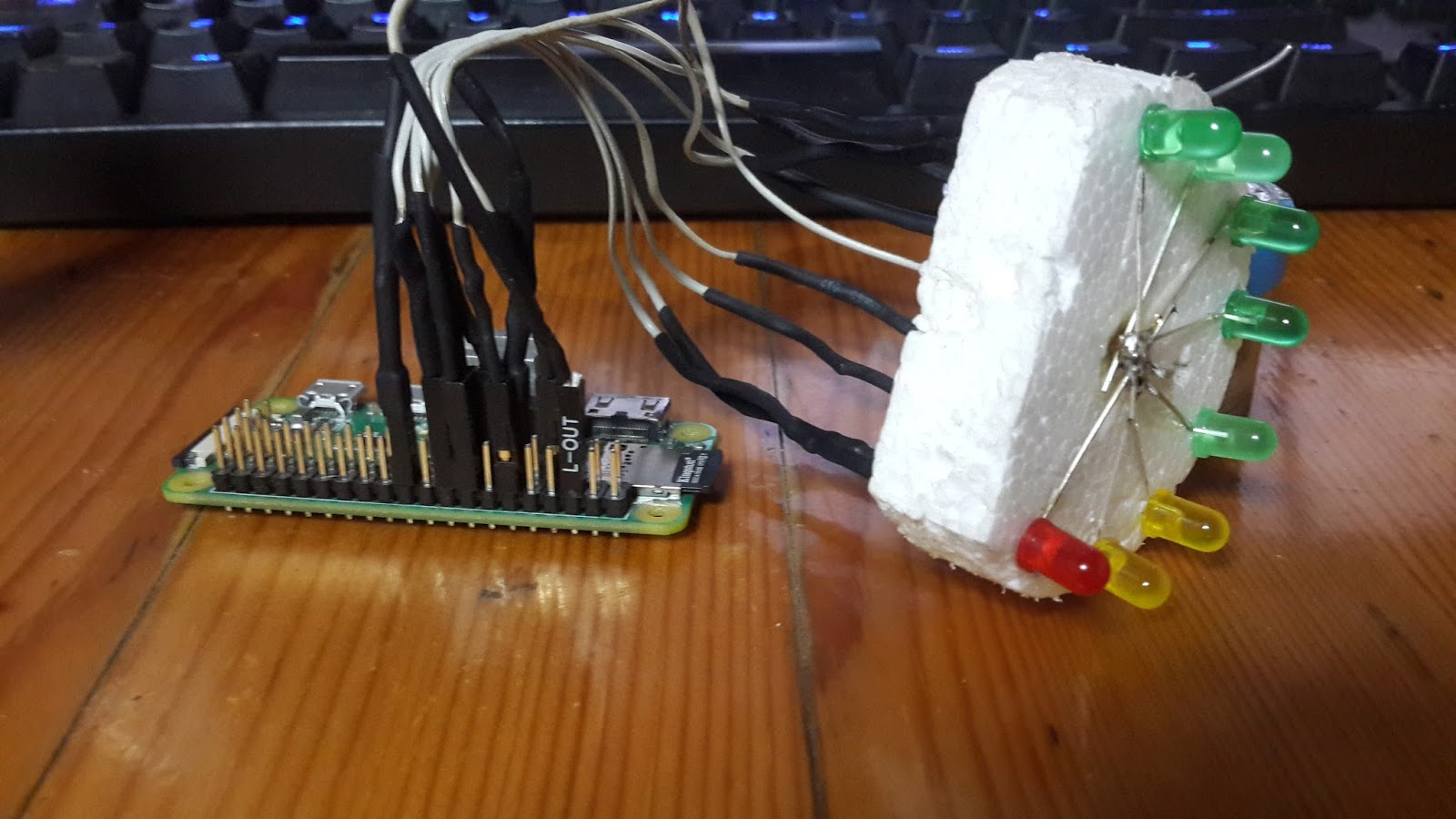

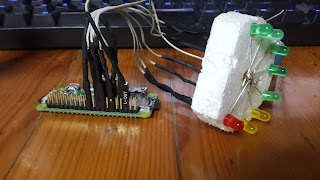

Everything is wired up

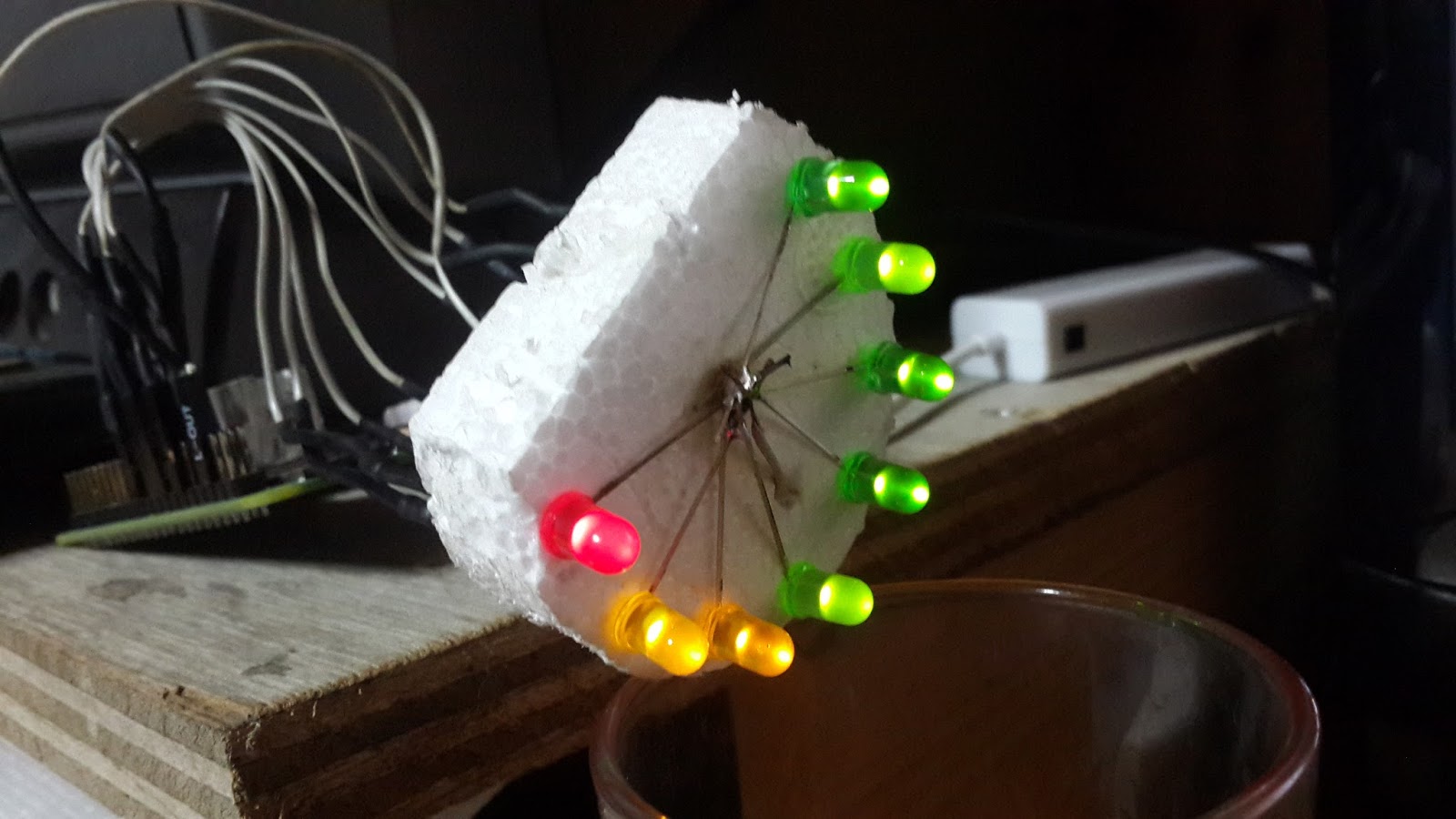

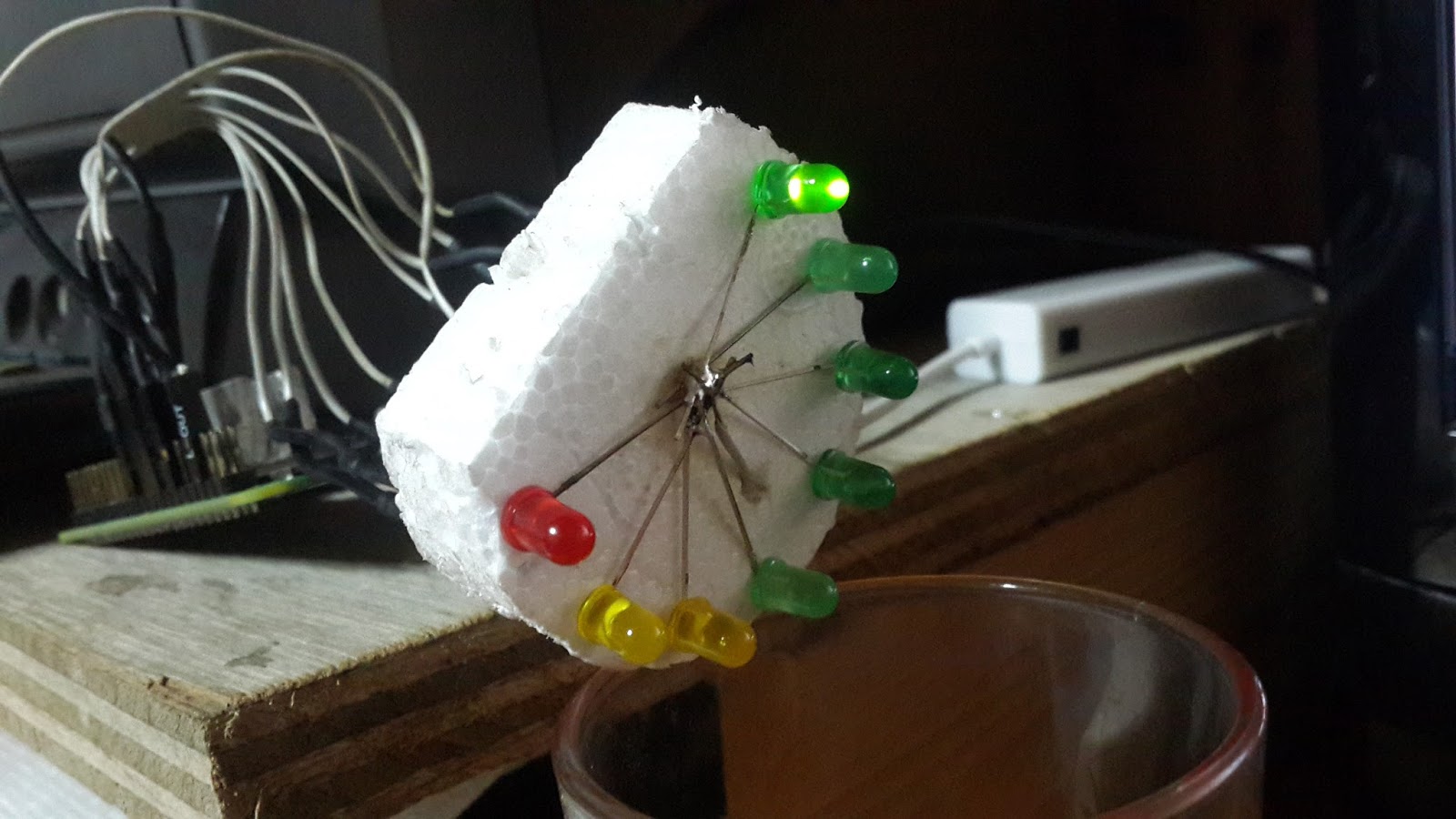

Testing threshold

Roger, 100%

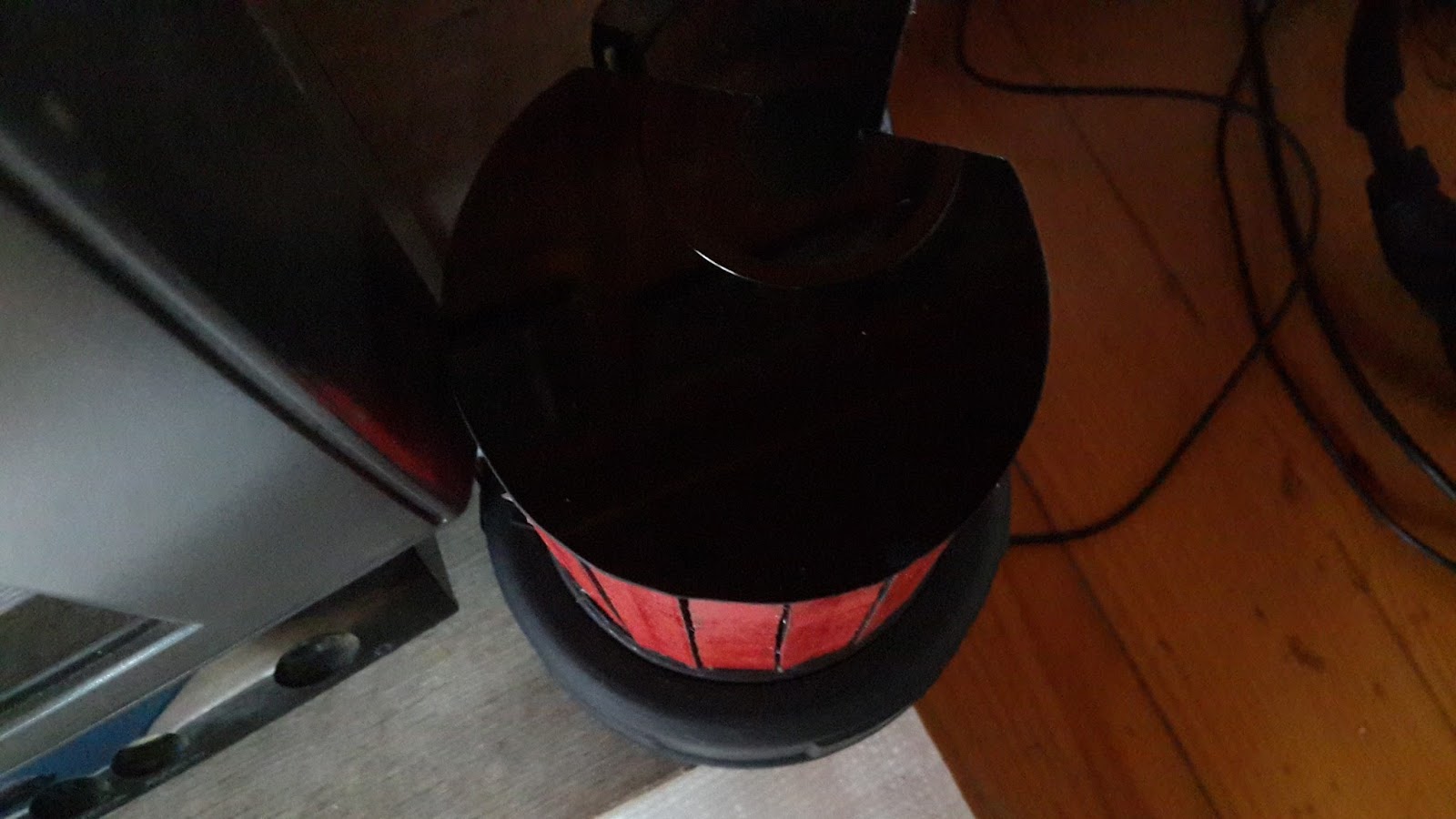

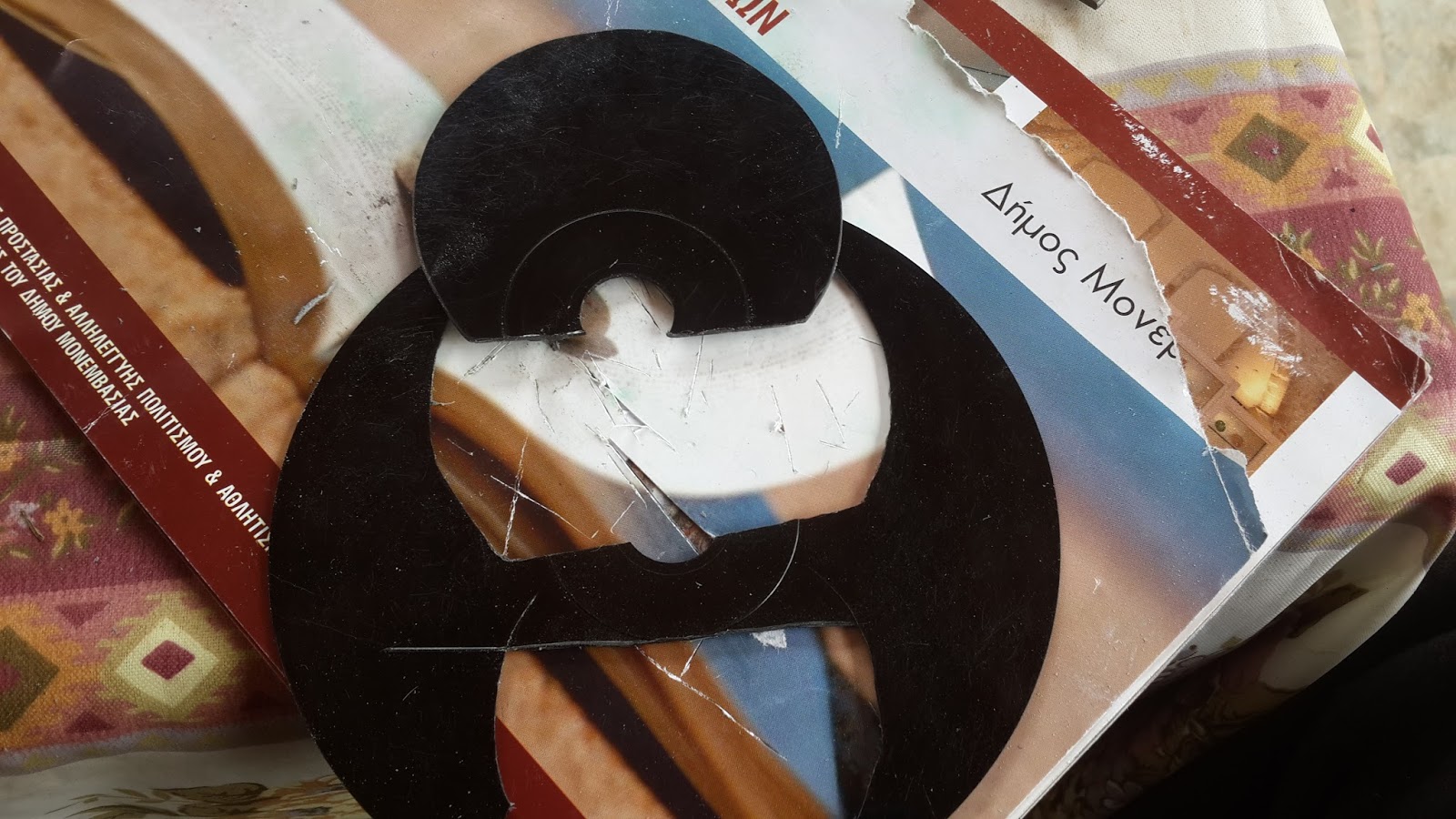

 A black CD was used for the roof top.
Removed the paint to become semi-transparent

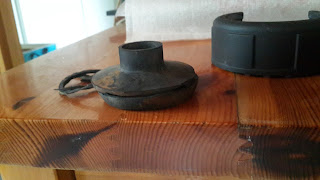

 Eeehhmm, a piece of rubber from a toilet flush...

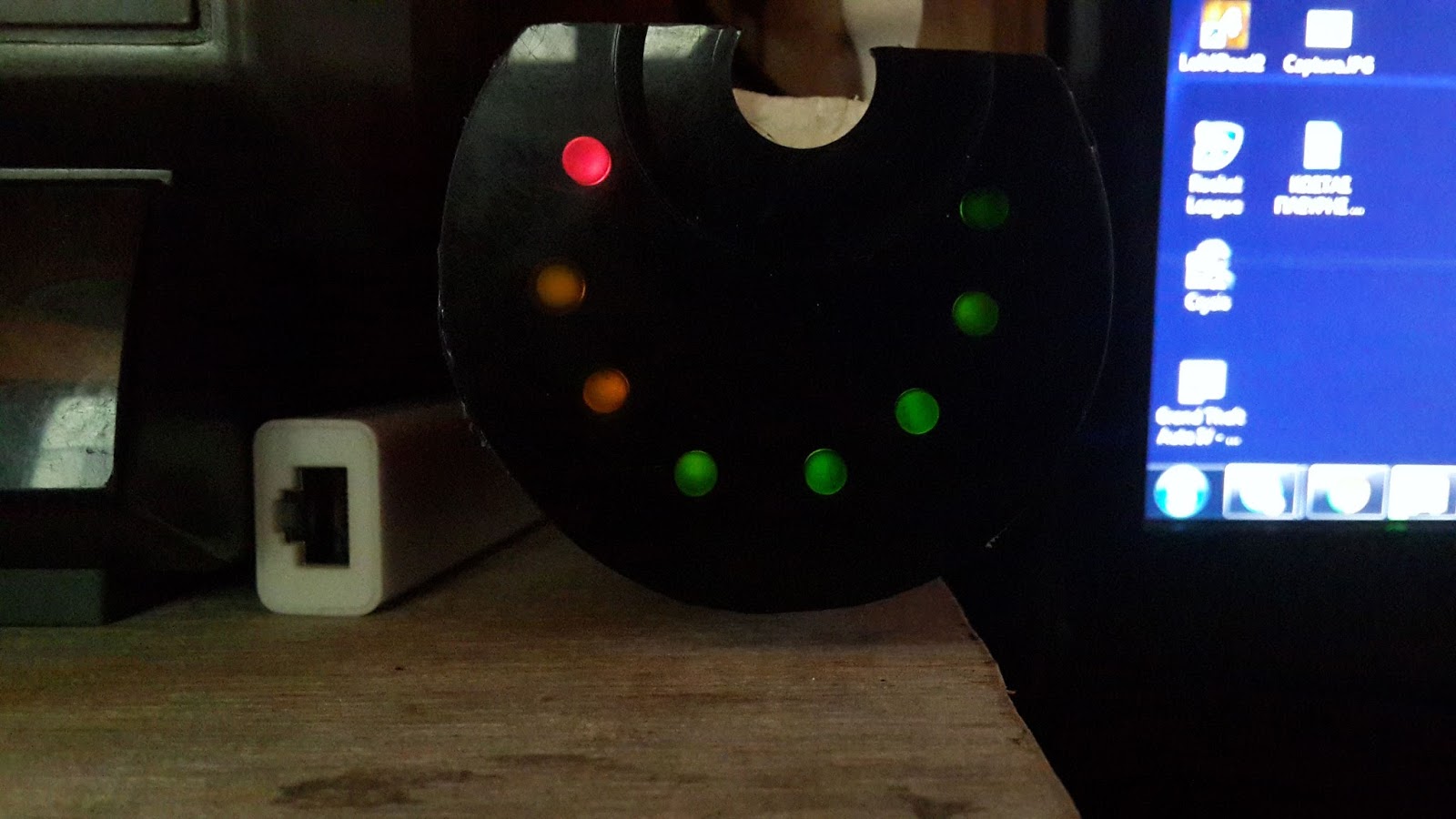

Testing CPU usage once more

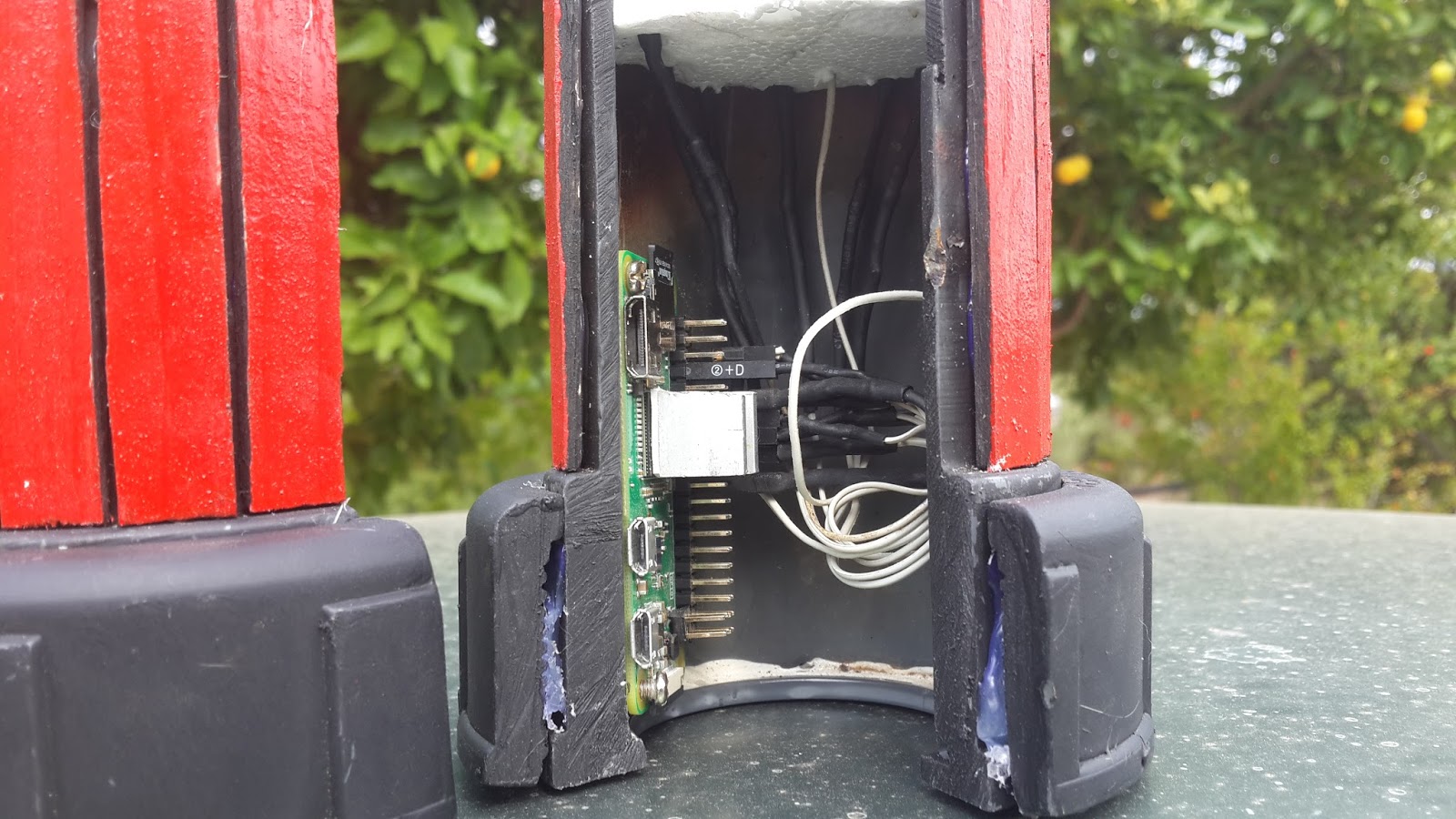

Behold! The Beast's internal organs

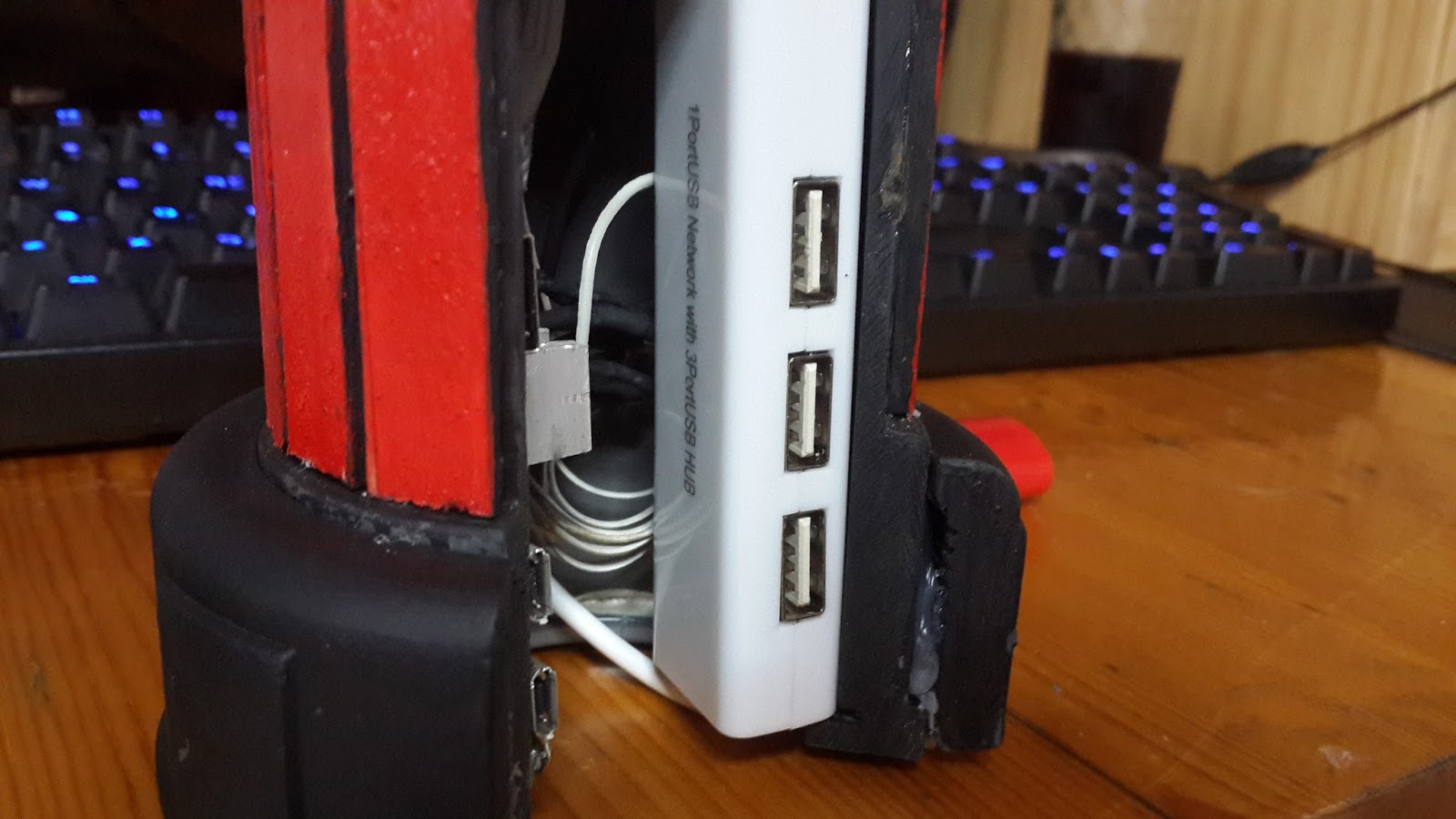

A USB plus Ethernet hub

Connected to a VGA screen via an HDMI adapter.
PS2 to USB keyboard controller.
Laser bluetooth mouse





That's all for now!

Πέμπτη 6 Ιουνίου 2013

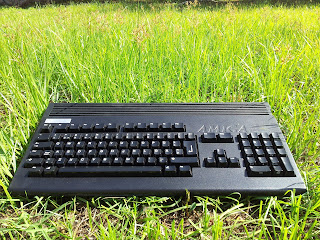

Amiga 1200 Black Project


Amiga 1200 Black Project

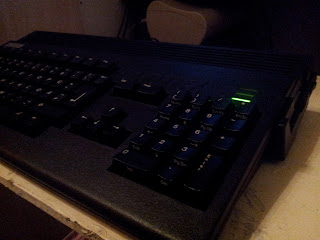

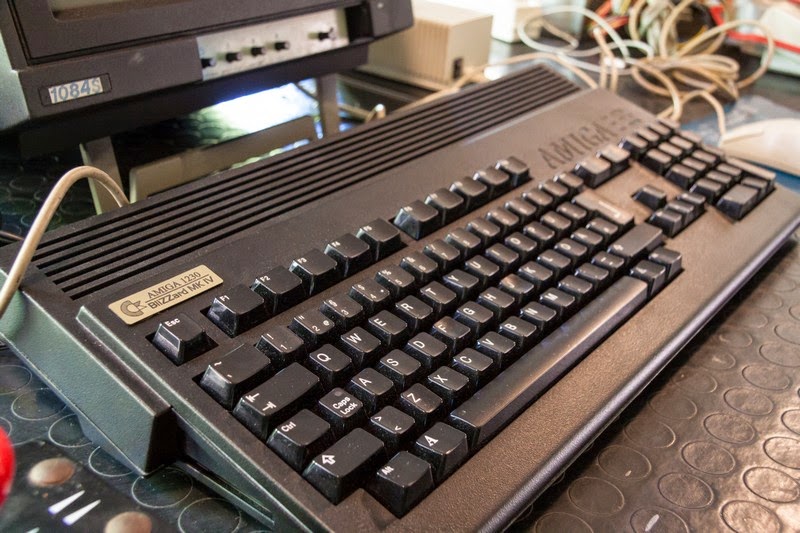

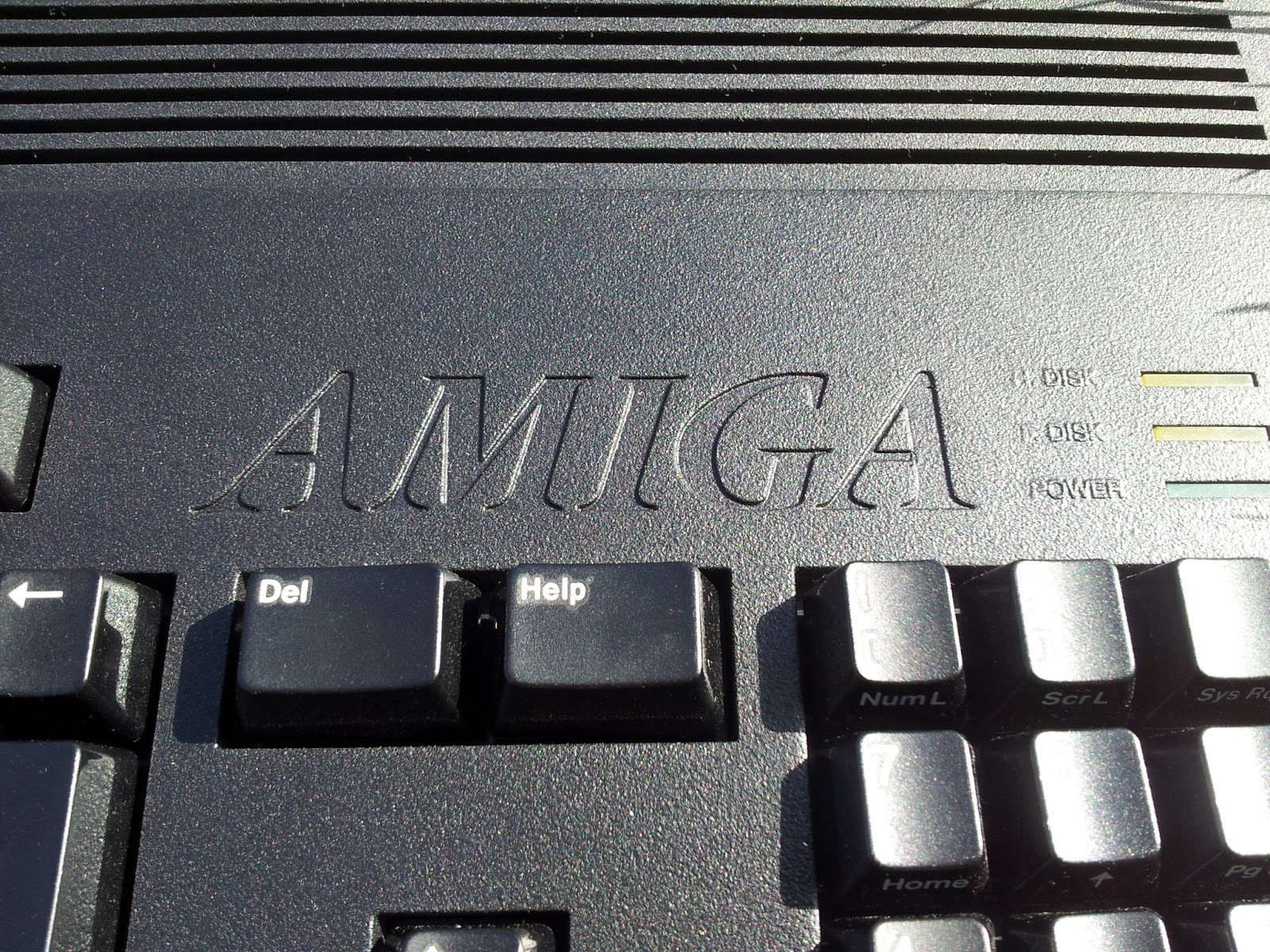

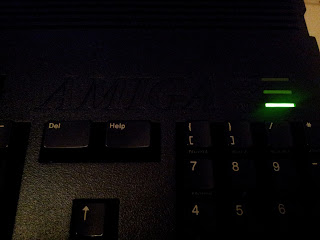

This is my approach to a black painted Amiga with a CDTV keyboard attached.

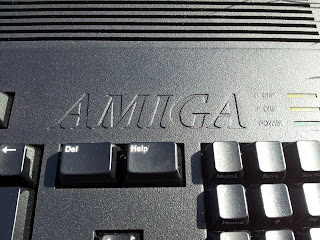

The main body is painted via air pistol and car paint.

Photos and Video below :

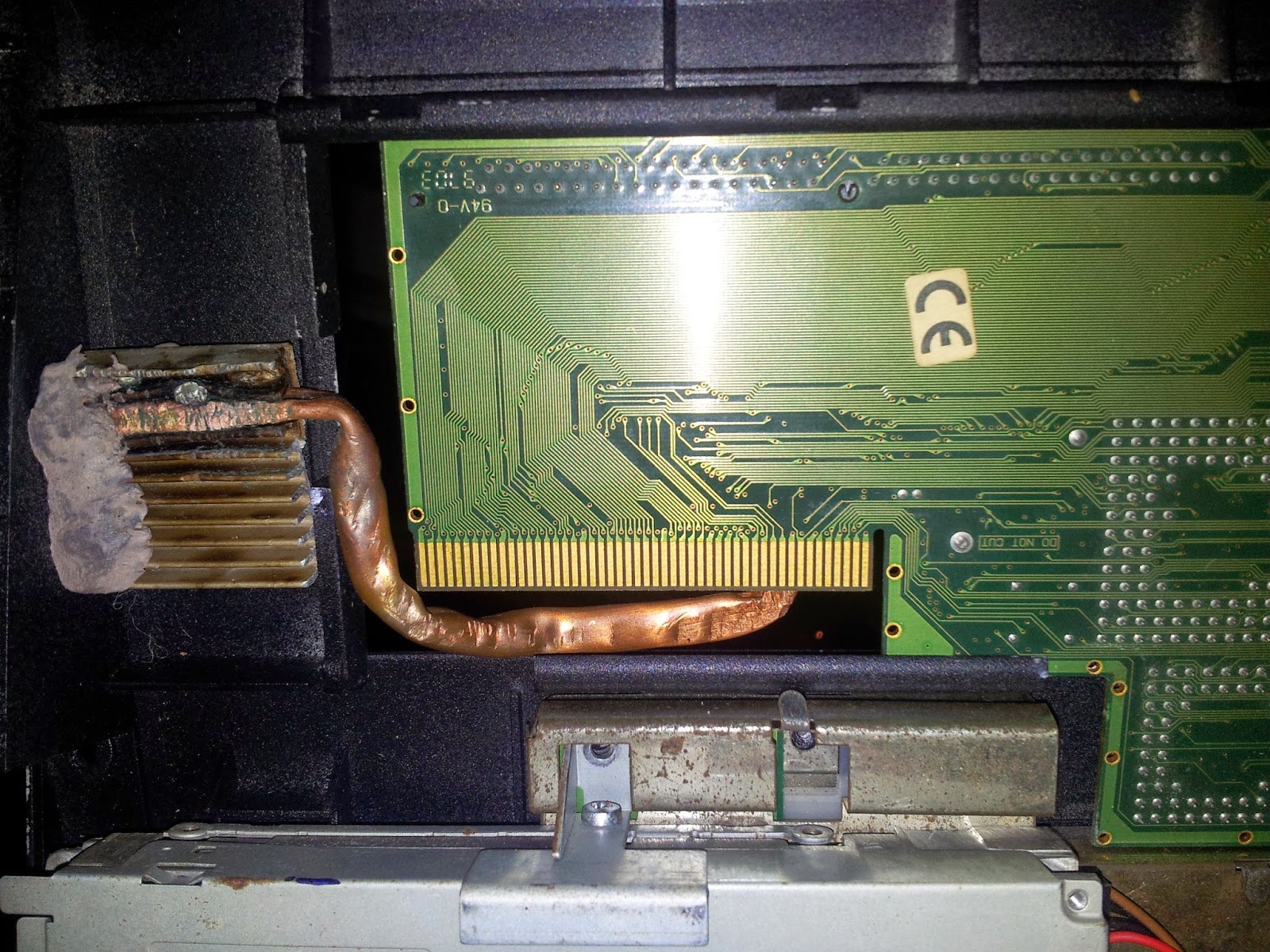

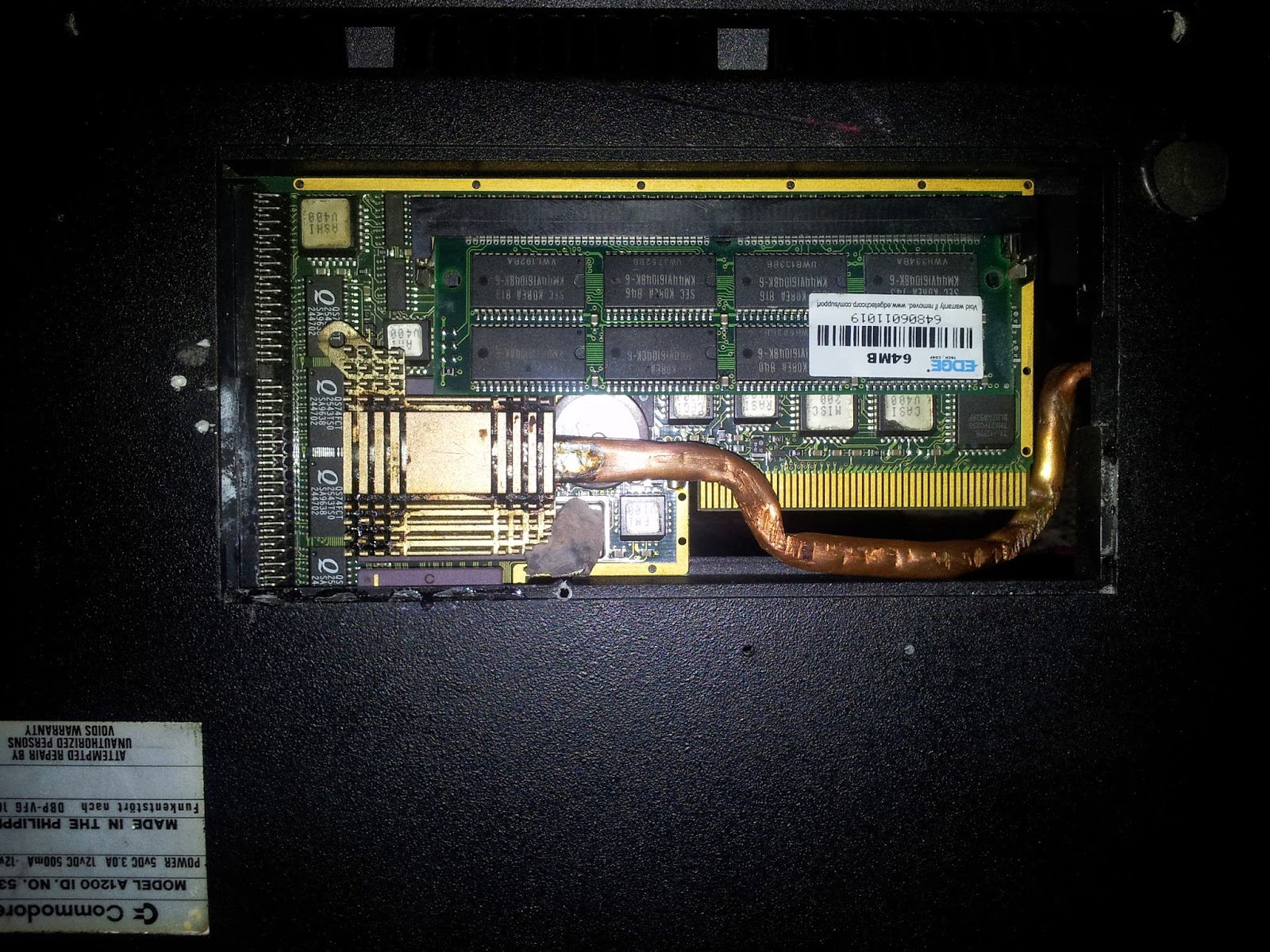

Added DIY CPU Cooler




New cooling system



Potentiometer for fan adjustment




Specifications:

Amiga 1200 Revision 2B

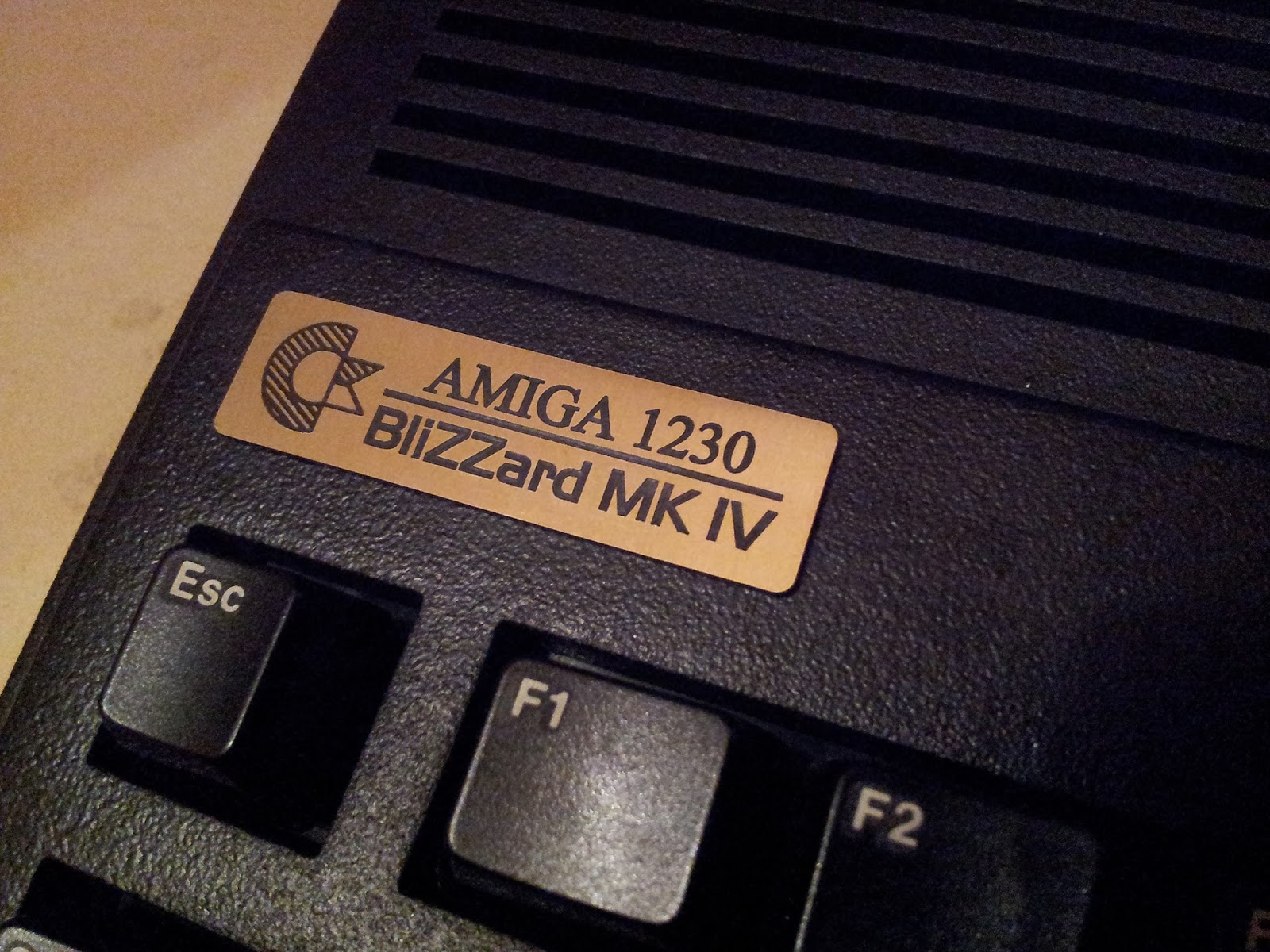

CPU  : Blizzard IV 68030 50MHz
FPU  : 68882 50MHz
RAM : 64MB 60ns (thanks to muadib)
HDD : 16GB SD Card
LAN : EasyNet WiFi PCMCIA Card
